Chapas Tipográficas

DIGITAL

Type Q (Shore D Hardness 25–67)
Base Item Hardness
(Shore D)		 Plate thickness
(mm)		 Relief depth
(mm)		 Reproduction Key advantages Main application
Film QF095KC 67 0.95 0.68 1–95%
175lpi		 Sharp and fine line
Suitable to flat bed printing		 Tag
Label
QF095JC 55 0.95 0.68 1–95%
200lpi		 Best reproduction
Outstanding ink transfer		 Tag
Label
QF080JB 55 0.8 0.59 1–95%
200lpi
QF095SB 40 0.95 0.74 1–95%
150lpi		 Outstanding ink transfer
Suitable to rotary press		 Business form
QF070SA 40 0.7 0.55 1–95%
150lpi
QF152BB 25 1.52 1.31 2–95%
150lpi		 Suitable to business form and varnish coating Business form
QF095BB 25 0.95 0.74 2–95%
150lpi
Metal QM083KR 67 0.83 0.53 1–95%
175lpi		 Sharp and fine line
Suitable to flat bed printing		 Tag
Label
QM073KR 67 0.73 0.43 1–95%
175lpi
QM095KT 67 0.95 0.69 1–95%
175lpi
QM095KU 67 0.95 0.69 1–95%
175lpi
QM083KU 67 0.83 0.57 1–95%
175lpi
QM073KU 67 0.73 0.47 1–95%
175lpi
QM058KS 67 0.58 0.36 1–95%
175lpi
QM095AR 67 0.95 0.65 1–95%
175lpi		 Suitable to dry offset printing
Wide latitude with excellent reproducibility		 Can
Plastic cup
QM083AR 67 0.83 0.53 1–95%
175lpi
QM073AR 67 0.73 0.43 1–95%
175lpi
QM095AU 67 0.95 0.69 1–95%
175lpi
QM083AU 67 0.83 0.57 1–95%
175lpi
QM073AU 67 0.73 0.47 1–95%
175lpi
QM120JR 55 1.20 0.90 1–95%
200lpi		 Best reproduction
Outstanding ink transfer		 Tag
Label
QM095JR 55 0.95 0.65 1–95%
200lpi
QM073JR 55 0.73 0.43 1–95%
200lpi
QM073JL 55 0.73 0.54 1–95%
200lpi

ANALÓGICO

Type K (Shore D Hardness 67)
Base Description Total Plate Thickness
(mm)		 Relief Depth
(mm)		 Letters Press Letter Press Picture Letter Press Name Dry Off Set Advantage
Film KF055GA 0.55 0.40 Good – – –
KF095MC 0.95 0.68 Good Good Good –
KF095GC 0.95 0.68 Good Good Good –
KF080GC 0.80 0.53 Good Good Good –
Metal KM152GR 1.52 1.22 Good Good Good Good
KM100GR 1.00 0.70 Good Good Good Good
KM095GR 0.95 0.65 Good Good Good Good
KM073GR 0.73 0.43 Good Good Good Good
KM083AU 0.83 0.57 Good Good Good Good
KM073AU 0.73 0.47 Good Good Good Good
Type L (Shore D Hardness 55)
Base Description Total Plate Thickness
(mm)		 Relief Depth
(mm)		 Letters Press Letter Press Picture Letter Press Name Dry Off Set Advantage
Film LF095GC 0.95 0.68 Good Good – – Lowest dot-gain and higher reproduction capability
Highest quality rotary label printing
LF080GB 0.80 0.59 Good Good – –
Type J (Shore D Hardness 55)
Base Description Total Plate Thickness
(mm)		 Relief Depth
(mm)		 Letters Press Letter Press Picture Letter Press Name Dry Off Set Advantage
Film JF095C 0.95 0.68 Good Good – – High quality rotary label printing
JF080B 0.80 0.59 Good Good Good –
Steel JM095T 0.95 0.69 Good Good Good Good Good for dry offset printing
JM083T 0.83 0.57 Good Good Good Good
Type E (Shore D Hardness 55)
Base Description Total Plate Thickness
(mm)		 Relief Depth
(mm)		 Letters Press Letter Press Picture Letter Press Name Letter Press Crush print Advantage
Film EF055GA 0.55 0.40 Good – – –
EF070GB 0.70 0.49 Good – – –
EF095GC 0.95 0.68 Good Good Good –
EF095MC 0.95 0.68 Good Good Good –
EF080MC 0.80 0.53 Good Good Good –
EF080MB 0.80 0.59 Good Good Good –
Type S (Shore D Hardness 40)
Base Description Total plate thickness
(mm)		 Relief depth
(mm)		 Business Form Back Carbon Business Form Desensitized Business Form Towel Textile Towel Textile Tape Advantage
Film SF070GA 0.70 0.55 Good – – – –
SF095GB 0.95 0.74 Good – – – Good
Type U (Shore D Hardness 27)
Base Description Total plate thickness
(mm)		 Relief depth
(mm)		 Business Form Back Carbon Business Form Desensitized Business Form Towel Textile Towel Textile Tape Advantage
Film UF070GA 0.70 0.55 Good Good – – Good
UF095GA 0.95 0.80 Good Good – – Good Easier mounting
UF095GB 0.95 0.74 Good Good – Good Good
Type B (Shore D Hardness 25)
Base Description Total plate thickness
(mm)		 Relief depth
(mm)		 Business Form Back Carbon Business Form Desensitized Business Form Towel Advantage
Film BF095B 0.95 0.74 Good Good Good
BF170B 2.00 1.78 – Good Good
Type C (Shore D Hardness 25)
Base Description Total plate thickness
(mm)		 Relief depth
(mm)		 Textile Towel Textile Tape Advantage
Film CF200GB 2.00 1.78 Good Good 2mm Rubber support
Heat-resistant

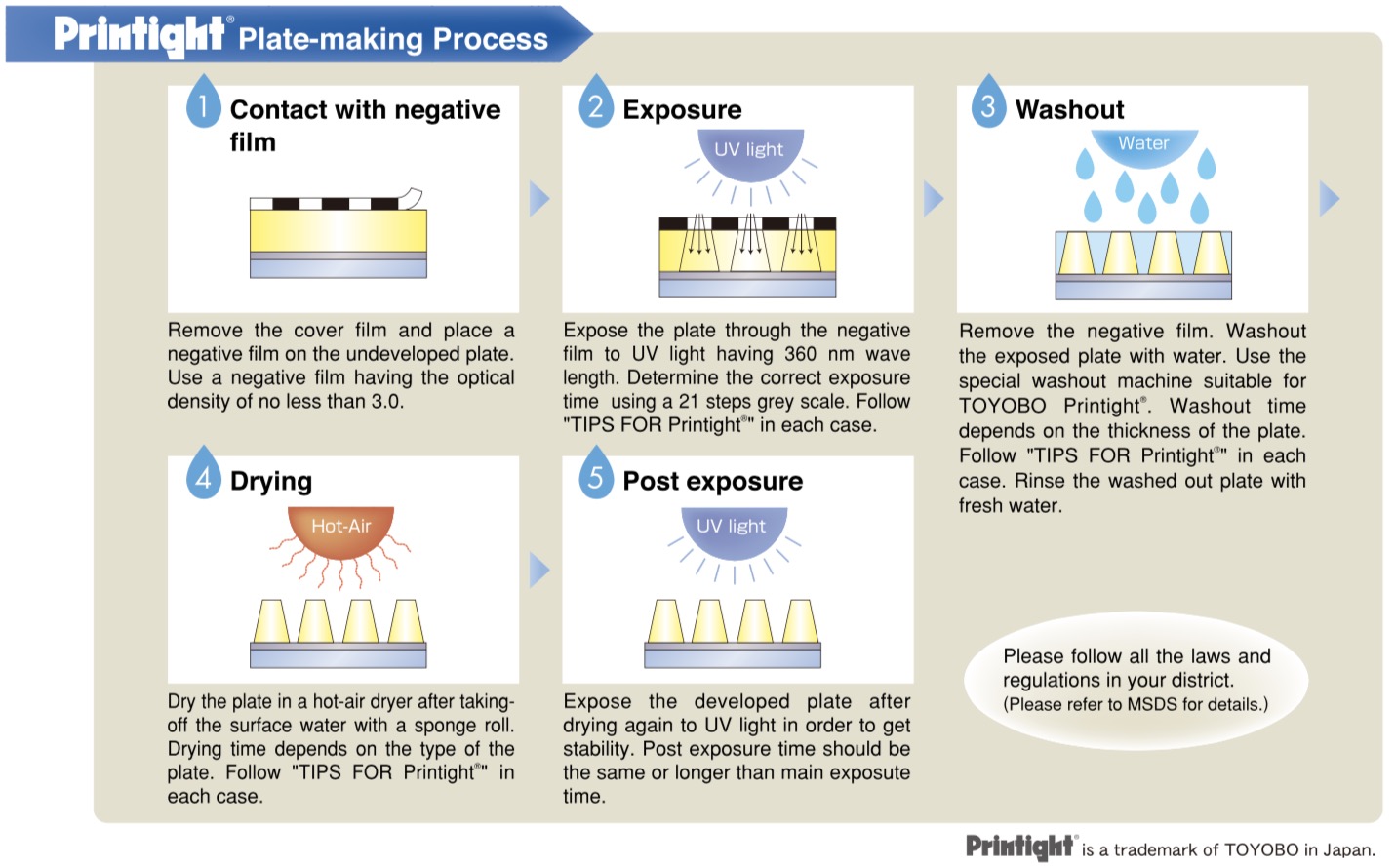

COMO PROCESSAR

Download PDF

VANTAGENS

Chapas fotopolímeras de nylon processadas em água.

TOYOBO foi sempre considerada como a pioneira das chapas fotosensíveis de nylon PRINTIGHT.
1
Lavável com Água

Toyobo Printlight © permite aos clientes desde sistema usarem qualquer água para lavagem.

2
Chapa Transparente e Fléxivel

Toyobo Printlight © permite aos clientes desde sistema usarem qualquer água para lavagem.

3
Capa Deslizante

Toyobo Printlight © permite aos clientes desde sistema usarem qualquer água para lavagem.

QUADRO DE APLICAÇÕES

Type Hardness
Shore D		 General
printing		 Business
form		 Tag,
Label		 Offset
(Dry-off)		 Textile Advantage
Q
 25–67 Good Good Good Good – Water washable letterpress printing for CTP
K 67 Good – – Good – Sharp and fine line
(Flat bed printing)
L 55 – – Excellent – – Highest quality rotary printing
J 55 – – Good Good – High quality rotary printing
E 55 Good – – – – Excellent ink transfer, Outstanding ink transfer
(Flat bed printing/Rotary printing)
S 40 – Good – – Good Excellent ink transfer, Sharp and fine line.
(Rotary printing)
U 27 – Good – – Good Excellent ink affinity
(High speed rotary printing)
B 25 – Good – – – Business form
C 25 – – – – Good Textile
